AFV-01 ANTENNA

AFV-01 antenna

Category: SKU: 35en Tags:

Description

Broadband dipole with low weight and high strength

• Frequency range 65.9-74.0; 87.5-108.0 MHz.
• 4 dBi Gain
• Vertical polarization
• Polished stainless steel

Additional information

Electrical parameters:

– Frequency range: 65.9-74.0; 87.5-108 MHz
– Impedance: 50 ohm
– Connectors: N, 7/16 ”f, 7/8” EIA
– Maximum power: 800W (N); 3kW (7/16 ”); 6kW-7/8 ”EIA)
– VSWR <1.35: 1
– Polarization: vertical
– Gain ratio: 4 dBi (relative to an isotropic radiator at a frequency of 98 MHz)

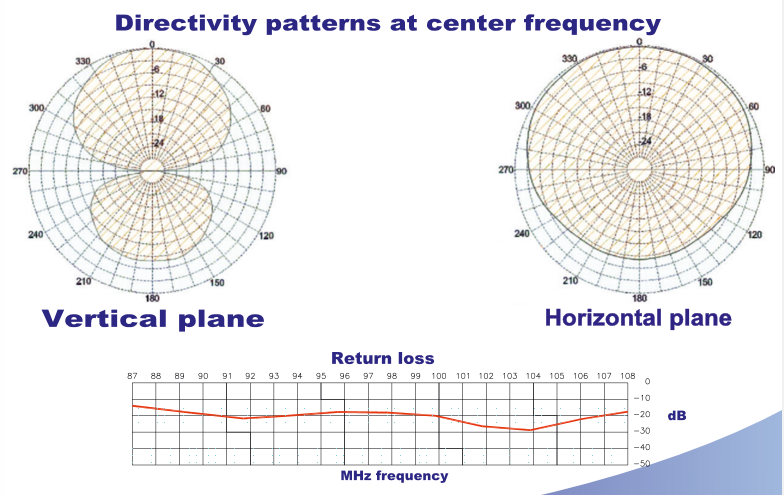

– Irregularity of the azimuthal radiation pattern: ± 1.5 dB (when installed on a pipe 60-120mm)

Mechanical parameters:

– Dimensions: 1400x900x50 mm
– Weight: 5.5 kg with bracket
– Wind load: 9.8 kg (at a wind speed of 160 km / h)
– Max wind speed: 220 km / h.
– Materials: Exterior: Stainless steel Center conductor: brass
– Fastening support: Pipe with a diameter of 60-120 mm.
