AFE-01 ANTENNA

AFE-01 Antenna

Category: SKU: 32en Tags:

Description

• Frequency range 87.5-108.0M Hz
• 0.7 dBd Gain
• Elliptical polarization
• Stainless steel housing

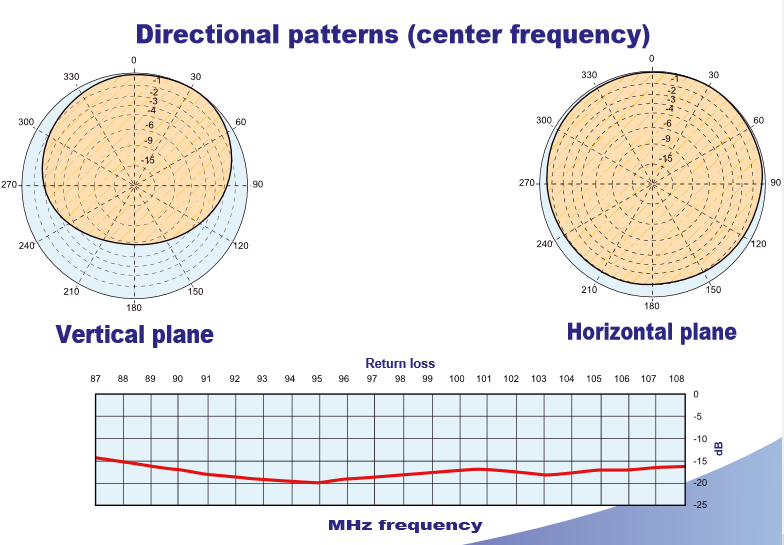

Antenna AFE-01 - diagram

Additional information

Electrical parameters:

– Frequency range: 87.5-108 MHz
– Impedance: 50 ohm
– Connectors: 7/16 "f, 7/8" EIA
– Maximum power: 3 kW (7/1 6 ”) – 6 kW (7/8” EIA)
– VSWR<1.35: 1
– Polarization: elliptical
– Gain ratio: 0.7 dBd (relative to a half-wave radiator at a frequency of 98 MHz)
– Irregular azimuthal radiation pattern: ± 2 dB

Mechanical parameters:

– Dimensions: 1560x1150x1150 mm
– Weight: 13 kg with a bracket
– Wind load: 31.1 kg (at a wind speed of 160 km / h)
– Max wind speed: 220 km / h.
– Materials: Exterior: Stainless steel Center conductor: brass
– Fastening support: Pipe with a diameter of 60-120 mm.
